GE 108
GE108 Series: A Versatile Aluminum Solution
The GE108 Series offers a wide range of aluminum doors and windows, from casement and sliding to fixed glass and awning styles.
Available Variants
Color: Matte Black
Color: Matte Grey
Color: Wallnut
Color: Narra
New variant
Single pane (5-10mm): Optimal for natural light and ventilation.
Double pane (5-6mm): Enhanced energy efficiency and sound insulation.
French option (7x15, 5-6mm): Adds a unique, stylish touch.
3-track design: Allows maximum airflow.
Sliding with fixed panel: Functional with a modern aesthetic.
Wall Allowance: 118mm
Aluminum Thickness: 1.1mm
Optional screen: Customizable for your preference.
A perfect blend of style and functionality for any space.
Old variant
Versatile design with modern aesthetics. Easy to install. Durable with flexible applications.
Sliding doors/windows: 3-track with flat or high tracks, single/double glazing.
Casement doors/windows, fixed glass, awnings: Single/double glazing options, with or without screens.
Wall Allowance: 118mm
Aluminum Thickness: 1.1mm
Technical Specifications
Width: 60mm
Glass: Toughened glass
Material: 6063-T5 primary aluminum
Surface treatment: Imported spraying
Sliding Windows and Doors:
Track options: Flat (10mm) or high (37mm)
Glazing: Single (5-12mm) or double (5-6mm)
Casement Windows and Doors:
Glazing: Single (5-12mm) or double (5-6mm)
Fixed Glass:
Glazing: Single (5-12mm) or double (5-6mm)

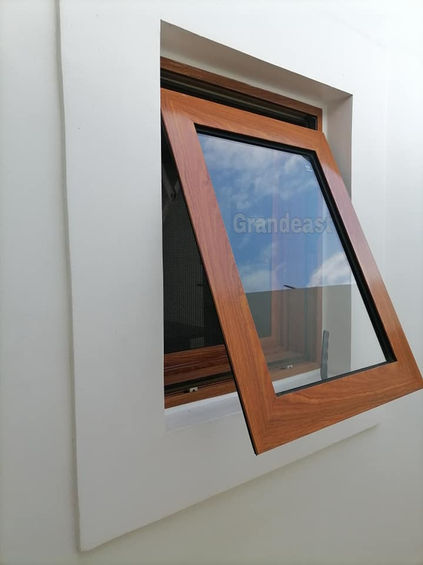

Awning Windows:
Glazing: Single (5-12mm) or double (5-6mm)
Options: With or without screens
Note: French windows (7x15) are not available with 12mm glazing.
Note: Narra and Walnut are variants designed exclusively for indoor use.
